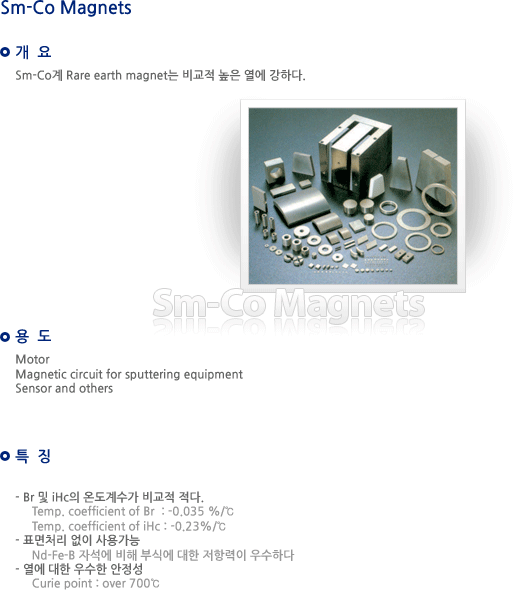

Material Code | Remanence Br |
Coercivity | Max. Energy Producy (BH)max |
Processing Method |
||
HCB | HCJ | |||||
T (kG) |
kA/m (kOe) |
kA/m (kOe) |
kJ/㎥ (MGOe) |
|||
1~5 Series | H-022A | 0.85~0.95 (8.5~9.5) |
636~756 (8.0~9.5) |
≧1193 (≧15.0) |
143~176 (18~22) |
Perpendicular Pressing |
H-18B | 0.80~0.90 (8.0~9.0) |
620~717 (7.8~9.0) |
≧1193 (≧15.0) |
127~152 (16~19) |
Parallel Pressing |
|
H-18C | 0.80~0.90 (8.0~9.0) |
620~717 (7.8~9.0) |
≧1591 (≧0.0) |
127~152 (16~19) |
||
2~17 Series |
H-30SH | 1.04~1.14 (10.4~11.4) |
732~852 (9.2~10.7) |
≧1591 (≧20.0) |
198~247 (25~31) |
Perpendicular Pressing |
H-30CH | 1.04~1.14 (10.4~11.4) |
636~796 (8.0~10.0) |
≧676 (≧8.5) |
198~247 (25~31) |
||
H-26SV | 1.02~1.12 (10.2~11.2) |
716~836 (9.0~10.5) |
≧1591 (≧20.0) |
190~231 (24~29) |
Parallel Pressing |
|
H-23CV | 0.95~1.05 (9.5~10.5) |
596~796 (7.5~10.0) |
≧636 (≧8.0) |
159~207 (20~26) |
||
H-20SV | 0.88~0.98 (8.8~9.8) |
636~756 (8.0~9.5) |
≧1114 (≧14.0) |
143~176 (18~22) |
Items | Unit | 1-5 Series | 2-7 Series | ||
H-22A, 18B, 18C | H-23CV | H-20SV | |||
Temp.Coeff. | (α) | %/℃ | -0.04 | -0.035 | -0.02 |
Termal
Expansion Coeff |
(C//)*1 | 10-6 / ℃ | 7 | 8 | 10 |
(Cㅗ)*2 | 3 | 11 | 13 | ||
Specific Heat | (C) | J/㎏•℃ | 420 | 380 | 380 |
Thermal conductivity |
(C//)*1 | W/m•℃ | 10 | 10 | 10 |
(Cㅗ)*2 | |||||
Flecural strength | (B.S) | Mpa | 100 | 100 | 100 |
Young's Modulus | (e) | Gpa | 150 | 110 | 110 |
Vickers Hardness | - | Hv | 600 | 600 | 500 |
Electric resistivity | (R) | μΩ•m | 0.5 | 0.8 | 0.8 |
Density | (ρ) | ㎏/㎥×10*3 | 8.3 | 8.5 | 8.5 |
Curie Temperature | (Tc) | ℃ | 700~750 | 800~850 | 800~850 |
