Curie Point 850∼890℃ Maximum Permissible Temperture 550℃ Specific Resisitivity 50∼75μΩ-㎝ Density ∼7.3g/㎤ Hardness Hrc45∼60 Thermal Expansion Coefficient 11∼13.5×10-6/℃ Temperature Coefficient - 0.016%/℃
-

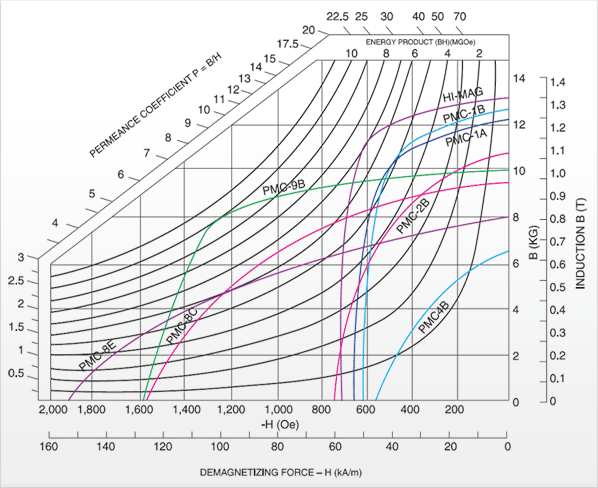

Pacific Code Residual Flux Density Coercive Force Maximum Energy Product Br HcB(Hc) (BH)Max. kG T Oe kA/m MGOe kJ/㎥ PMC-1A 12.3∼12.8 1.23∼1.28 650∼700 51.7∼55.7 5.0∼5.5 39.8∼43.8 PMC-1B 12.5∼13.0 1.25∼1.30 600∼660 47.7∼52.5 4.8∼5.5 38.2∼43.8 PMC-1D 12.8∼13.2 1.28∼1.32 650∼700 51.7∼55.7 5.3∼6.2 42.2∼49.3 PMC-1L 11.8∼12.4 1.18∼1.24 570∼620 45.4∼49.3 4.5∼5.2 35.8∼41.4 HIMAG 13.0∼14.0 1.30∼1.40 700∼800 55.7∼63.7 6.5∼8.0 51.7∼63.7 PMC-2B 10.0∼11.0 1.00∼1.10 700∼780 55.7∼62.1 3.5∼4.2 27.8∼33.4 PMC-2C 11.0∼11.8 1.10∼1.18 680∼750 54.1∼60.0 3.5∼4.5 27.8∼35.8 PMC-4A 6.0∼7.0 0.60∼0.70 550∼620 43.7∼49.3 1.3∼1.6 10.3∼12.7 PMC-4B 6.0∼7.0 0.60∼0.70 500∼550 39.8∼43.7 1.3∼1.5 10.3∼11.9 PMC-4C 5.0∼6.0 0.50∼0.60 650∼750 51.7∼60.0 1.3∼1.7 10.3∼13.5 PMC-5AB 8.0∼9.5 0.80∼0.95 130∼190 10.3∼15.1 - - PMC-8B 8.3∼9.0 0.83∼0.90 1380∼1550 110∼123 4.8∼5.4 38.2∼43.0 PMC-8C 8.5∼9.0 0.85∼0.90 1500∼1650 119∼131 5.0∼6.5 39.8∼51.7 PMC-8E 7.5∼8.5 0.75∼0.85 1800∼2100 143∼167 5.5∼7.0 43.8∼55.7 PMC-9B 10.0∼11.0 1.00∼1.10 1300∼1500 104∼119 9.0∼11.0 71.6∼87.5
