Magnetic Characteristics

Processing Method	Material Code	Remanence Br		Coercivity				Max BH Product (BH)max
				HCB		HCJ
		T	kG	kA/m	kOe	kA/m	kOe	kJ/㎥	MGOe
	NMX-S54	1.45~1.51	14.5~15.1	939~1153	11.8~14.5	≧875	≧11	405~437	51~55
	NMX-S52	1.42~1.48	14.2~14.8	835~994	10.5~12.5	≧875	≧11	389~421	49~53
	NMX-S50BH	1.39~1.45	13.9~14.5	1042~1122	13.1~14.1	≧1114	≧14	374~405	47~51
	NMX-S	1.36~1.43	13.6~14.3	1018~106	12.8~13.9	≧1273	≧16	358~397	45~50
	NMX-S	1.30~1.37	13.0~13.7	970~1058	12.2~13.3	≧1671	≧21	326~366	41~46
	NMX-S	1.28~1.35	12.8~13.5	962~1042	12.1~13.1	≧1830	≧23	310~350	39~44
	NMX-S	1.24~1.31	12.4~13.1	923~1018	11.6~12.8	≧1990	≧25	294~334	37~42
	NMX-S	1.19~1.27	11.9~12.7	883~978	11.1~12.3	≧2228	≧28	270~310	34~39
	NMX-S	1.16~1.24	11.6~12.4	883~962	11.1~12.1	≧2387	≧30	254~294	32~37
	NMX-S	1.12~1.20	11.2~12.0	859~939	10.8~11.8	≧2626	≧33	237~278	30~35
	NMX-	1.39~1.45	13.9~14.5	835~1034	10.5~13.0	≧875	≧11	374~405	47~51
	NMX-	1.36~1.42	13.6~14.2	1018~1098	12.8~13.8	≧1114	≧14	358~389	45~49
	NMX-	1.33~1.39	13.3~13.9	994~1074	12.5~13.5	≧1273	≧16	342~374	43~47
	NMX-	1.30~1.36	13.0~13.6	978~1058	12.3~13.3	≧1273	≧16	326~358	41~45
	NMX-	1.27~1.34	12.7~13.4	947~1026	11.9~12.9	≧1671	≧21	310~350	39~44
	NMX-	1.24~1.31	12.4~13.1	923~1002	11.6~12.6	≧1671	≧21	294~334	37~42
	NMX-	1.20~1.28	12.0~12.8	915~994	11.5~12.5	≧1990	≧25	278~318	35~40
	NMX-	1.16~1.24	11.6~12.4	883~962	11.1~12.1	≧2228	≧28	254~294	32~37
	NMX-	1.10~1.18	11.0~11.8	835~915	10.5~11.5	≧2387	≧30	230~270	29~34
	NMX-	1.29~1.36	12.9~13.6	826~1018	10.5~12.8	≧875	≧11	318~358	40~45
	NMX-	1.26~1.34	12.6~13.4	931~1026	11.7~12.9	≧1114	≧14	302~342	38~43
	NMX-	1.21~1.30	12.1~13.0	915~1010	11.5~12.7	≧1273	≧16	278~326	35~41
	NMX-	1.17~1.26	11.7~12.6	875~978	11.0~12.3	≧1671	≧21	262~310	33~39
	NMX-	1.10~1.20	11.0~12.0	827~931	10.4~11.7	≧1990	≧25	230~278	29~35
	NMX-	1.06~1.16	10.6~11.6	795~899	10.0~11.3	≧2387	≧30	206~254	26~32

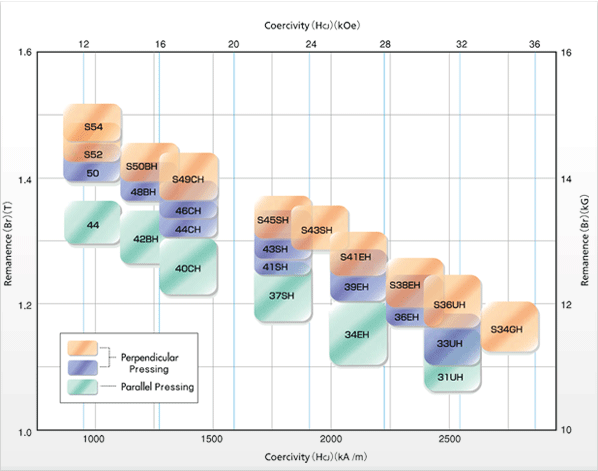

Range of Magnetic Properties
