Generals

These magnets have generally the same properties as cast magnets, with the following special characteristics.

- High magnetic characteristics.
- Small size and complex shapes are possible.
- Superb mechanical strength.

Applications

- Measuring Instruments
- Sensors
- Level Meter
- Panel Meter

Physical Properties

Pacific Code Residual Flux Density Coercive Force Maximum Energy Product
Br HcB(Hc) (BH)Max.
kG T Oe kA/m MGOe kJ/㎥
PMS-2 6.4~ 7.4 0.64~ 0.74 490~ 600 39~ 47 1.2~ 1.6 9.5~ 12.7
PMS-5 10∼ 11.5 1.00~ 1.15 580~ 630 46~ 50 3.2~ 4.5 25.5~ 35.8
PMS-6 7.7~ 8.7 0.77~ 0.87 650~ 760 51~ 60 2.3~ 3.5 18.3~ 27.8
PMS-8 5.5~ 6.4 0.55~ 0.64 1,100~1,200 87~ 95 2.0~ 2.7 15.9~ 21.5
PMS-8H 8.3~ 9.0 0.83~ 0.90 1,450~1,600 115~ 127 4.5~ 5.5 35.8~ 63.3

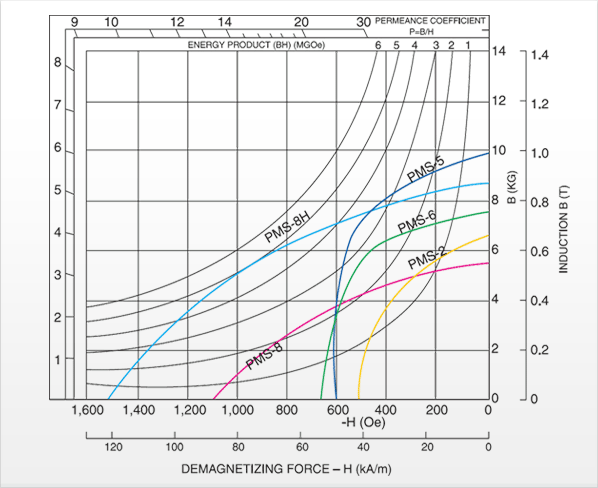

Demagnetic Characteristics
