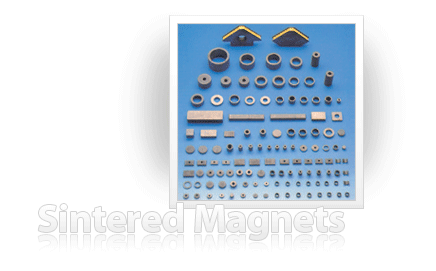

Sintered Magnets
Generals
As you know, there are two production process in ferrite magnet fields.
Dry process will be adopted when production of small size or small quantity is required because of the ease of tool change and the lower cost in developing toolings than wet process, even though it has a weak point of lower magnetic properties than those of wet.
Applications
-Small size DC Motor, CDP Pick up, Attachments, ToysMagnetic Characteristics

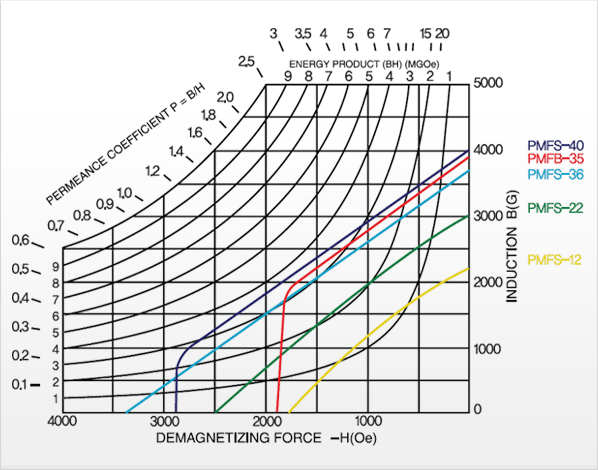

Pacific Code Residual Flux Density Coercive Force Max. Energy Production Remarks Br HcB(Hc) HcJ(iHc) (BH)max mT kG kA/m kOe kA/m kOe kJ/㎥ MGOe PMFB-12 2.1∼2.3 0.21∼0.23 1.7∼1.9 135∼151 3.4∼3.8 270∼302 1.0∼1.2 7.9∼9.5 Isotropic PMFB-35 3.8∼4.0 0.38∼0.40 1.8∼2.0 143∼159 1.8∼2.0 143∼159 3.0∼3.5 23.9∼27.8 Ba PMFS-40 3.8∼4.1 0.38∼0.41 2.8∼3.1 223∼246 2.9∼3.2 231∼254 3.5∼4.0 27.8∼31.8 High Br PMFS-36 3.6∼3.8 0.36∼0.38 3.2∼3.5 254∼278 3.3∼3.6 262∼286 3.0∼3.6 23.9∼28.6 High HcJ(iHc) PMFS-22 2.8∼3.2 0.28∼0.32 2.3∼2.7 183∼215 3.2∼3.6 254∼286 1.8∼2.2 14.3∼17.5 RRM Demagnetic Characteristics
